ARBRO-STROKE HARVESTER HEADS

Arbro-Stroke 400 Harvester Head Arbro-Stroke is a stroke harvester, which fells, delimbs and cuts trees to length.

Arbro-Stroke harvester is available in two models that can be easily installed on a standard loader. Arbro-Stroke 400 is especially meant for thinning operations and Arbro-Stroke 1000 can also handle bigger tasks.

Compared to other same size harvester heads the Arbro-Stroke has a lot of delimbing power.
Arbro-Stroke can easily be connected and disconnected on the rotator of the loader. And most common farm tractors have enough hydraulic power to operate model 400. Model 1000 requires a heavier carrier. A good choice would be an excavator.

The harvester has a superior quality measuring device that makes the production highly efficient. The exceptional measuring device comes as standard equipment.

The harvester head is equipped with a reliable Volvo saw motor. The cutter bar is available in the size of either 14'' or 16'' for model 400 and 20'' for model 1000.

The operating handles have been designed for professional use. The design of them makes the use of the loader and the Arbro-Stroke harvester head a pleasure.

The harvester has an automatic stroke and the tree can be delimbed with a one-button function. Arbro-Stroke is equipped with a measuring device and the stroke will stop at the pre-selected length for the log to be cut. The measuring device can be programmed for various pre-selected lengths. In addition any length can be chosen at any time. As optional equipment the thickness of the log can also be measured. The delimbing knives and grip arms can be opened separately.

IMAGES FOR ARBRO STROKE HARVESTERS 400S & 1000

Tête abatteuseArbro 400 Stroke Log Harvester Head

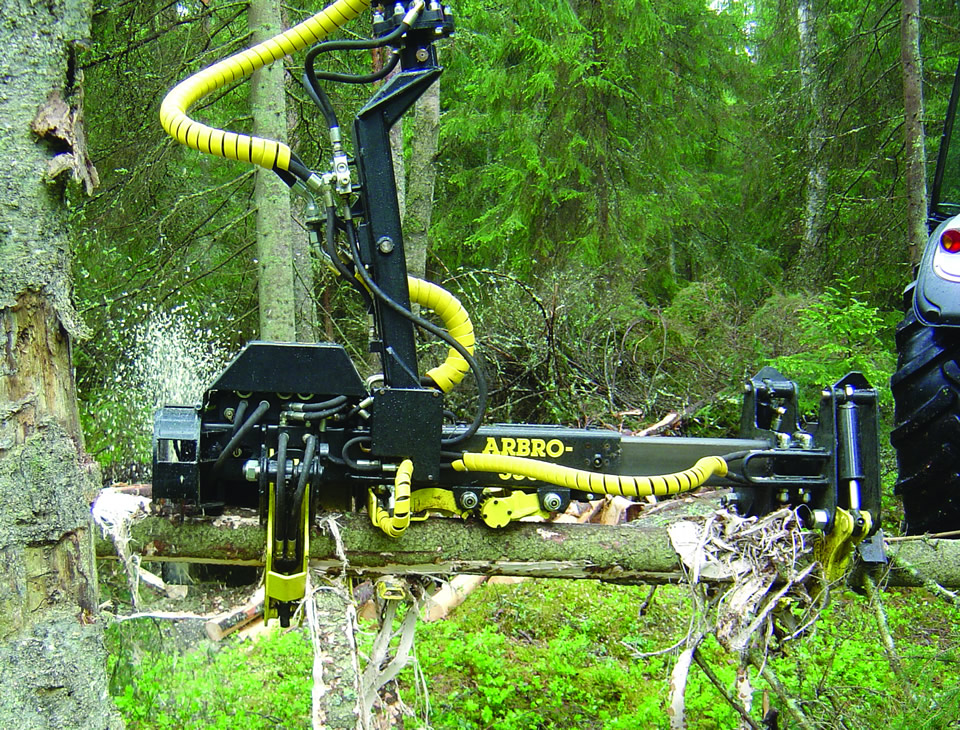

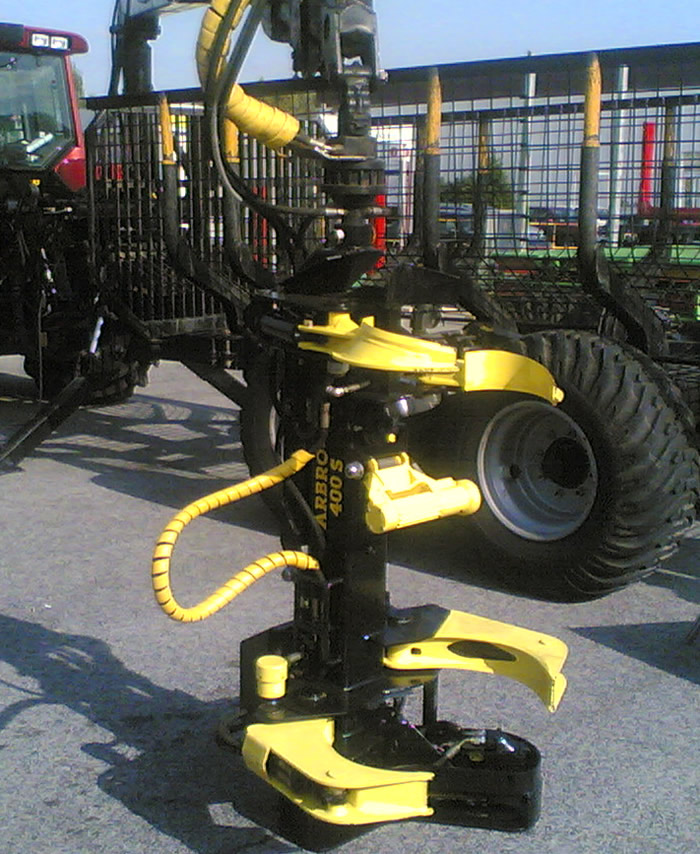

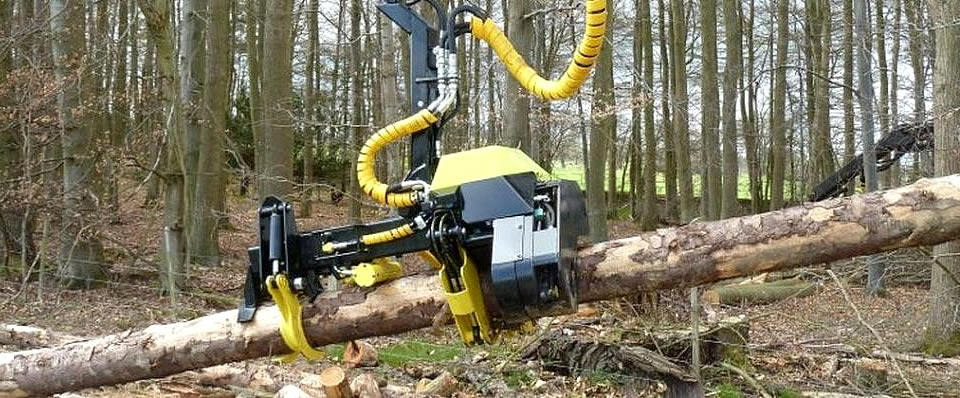

Arbro 400 Stroke Log Harvester Head

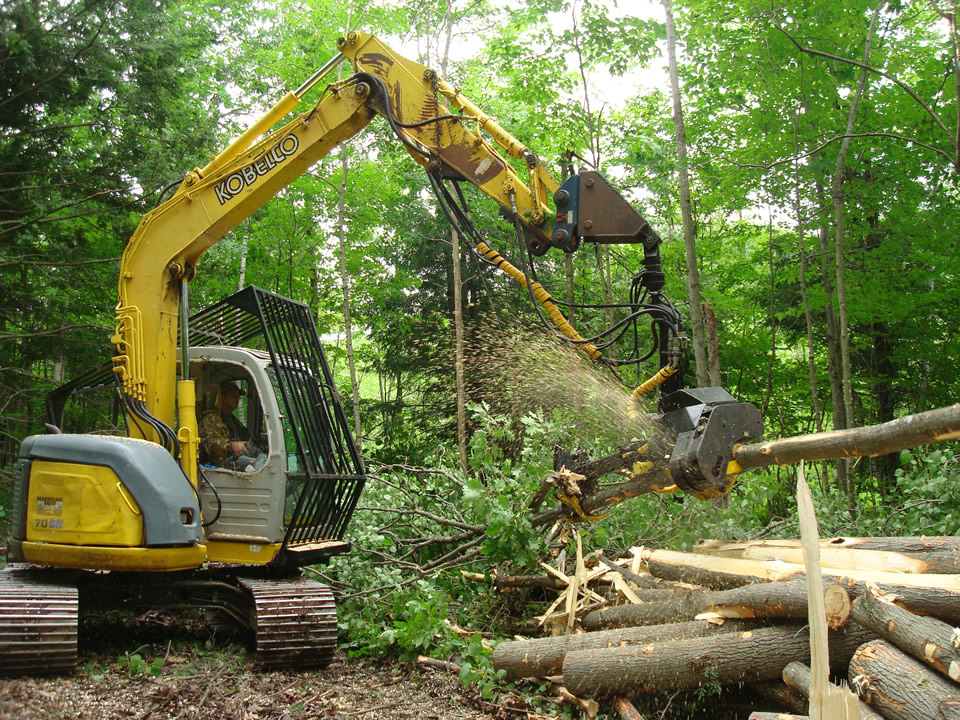

Arbor 400 Stroke Harvester Head for logging on Kobelco

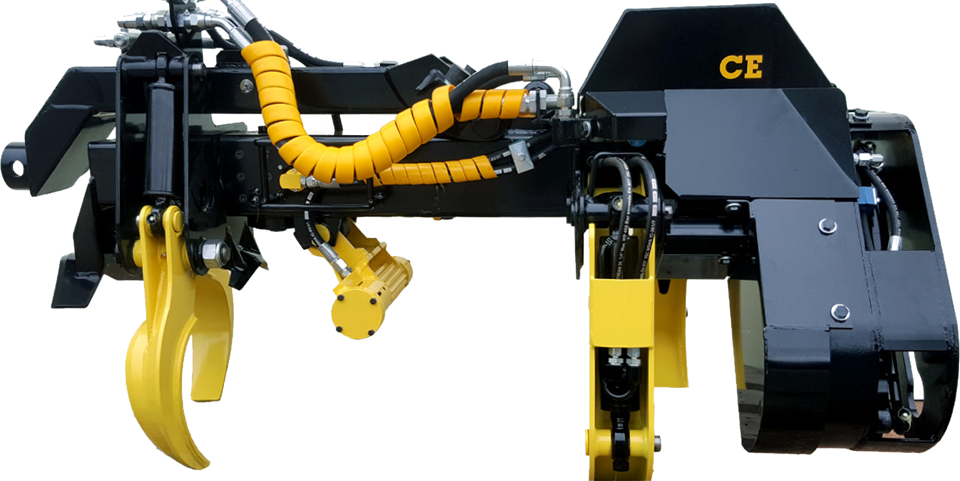

Arbro 1000 Stroke Log Harvester Head
Arbro 1000 Stroke  Log Harvester Head

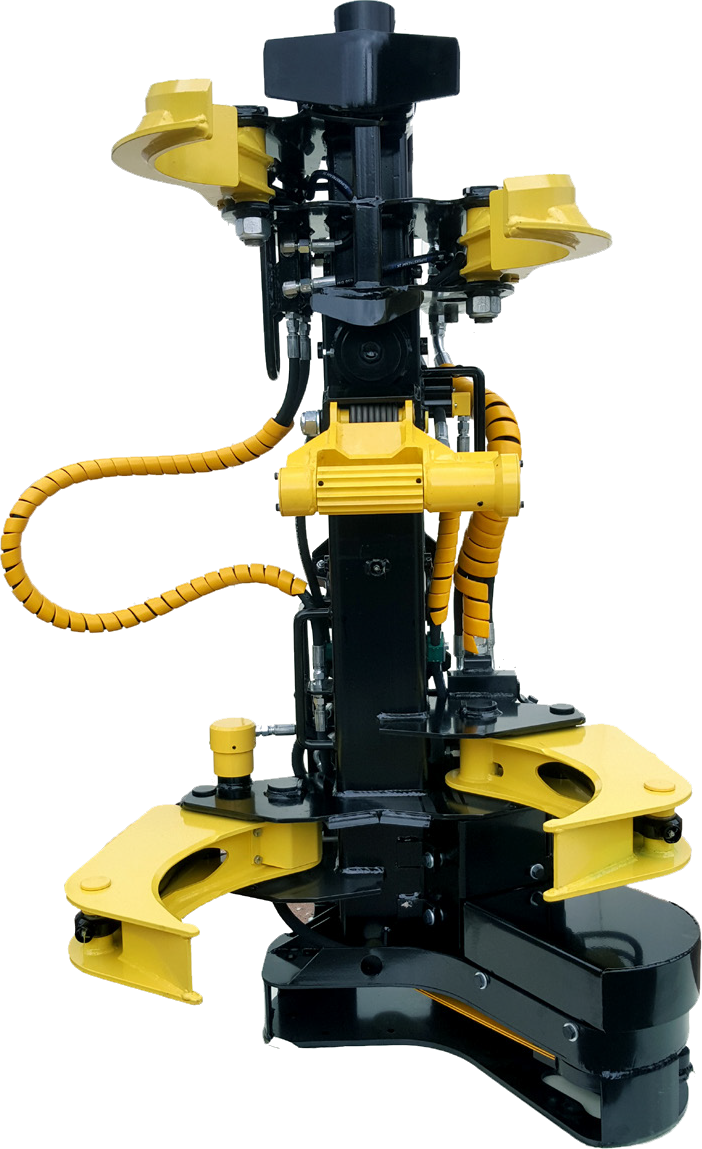

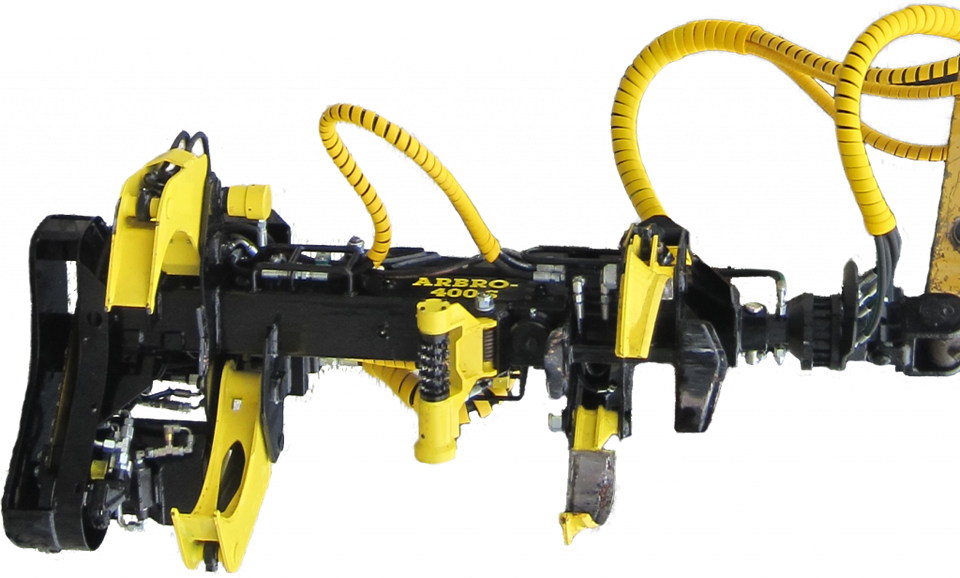

Arbro 400 Stroke Log Harvester Head

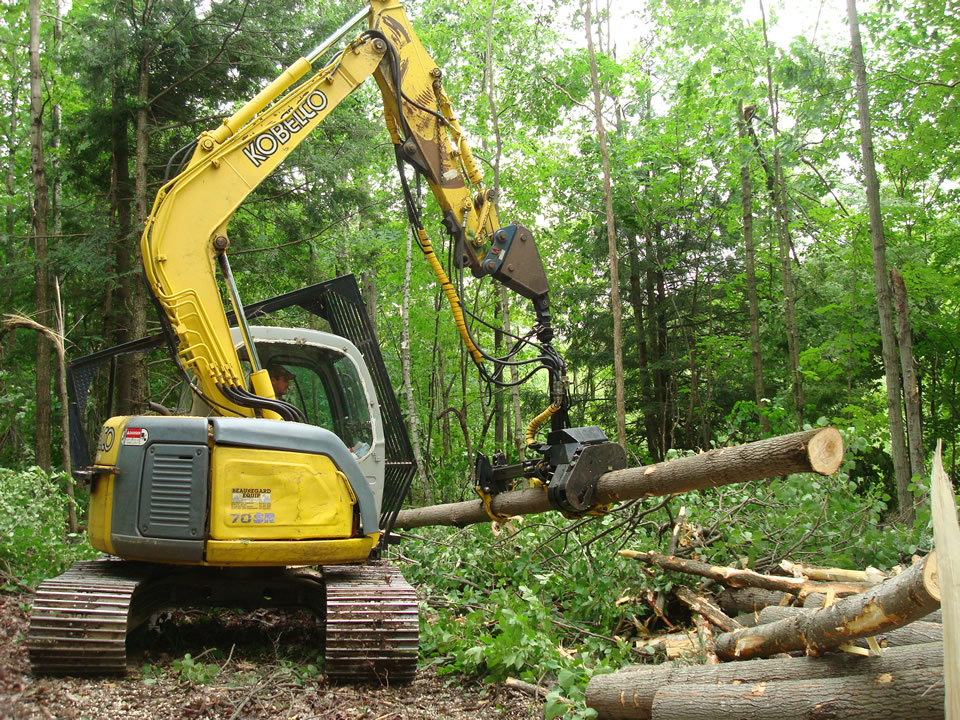

Arbor 400 Stroke Harvester Head for logging on Kobelco

TECHNICAL SPECIFICATIONS

Description Arbro 400 Arbro 1000
Oil Flow 68-80 l/min 106-120 l/min
18-21 GPM 28-32 GPM
Operating Pressure 175 bar 180 bar
2,500 PSI 2,600 PSI
Weight (without oil) 330 kg 550 kg
730 lbs 1,210 lbs
Saw Motor Volvo F11-5 F11-10
Saw Bar 14" or 16" 20"
Stroke 660 mm 660 mm
26" 26"
Delimbing Force 2,220 kp 3,500 kp
4,850 lbs 7,800 lbs
Maximum opening of delimbing knives 360 mm 450 mm
14.2" 17.7"
Maximum opening of grip arms 430 mm 550 mm
16.9" 21.7"
Maximum diameter 400 mm 500 mm
15.75" 19.7"
Approximate values for all specifications.
