PALMS ATV 1.42 LOG CRANE & 2D TRAILER

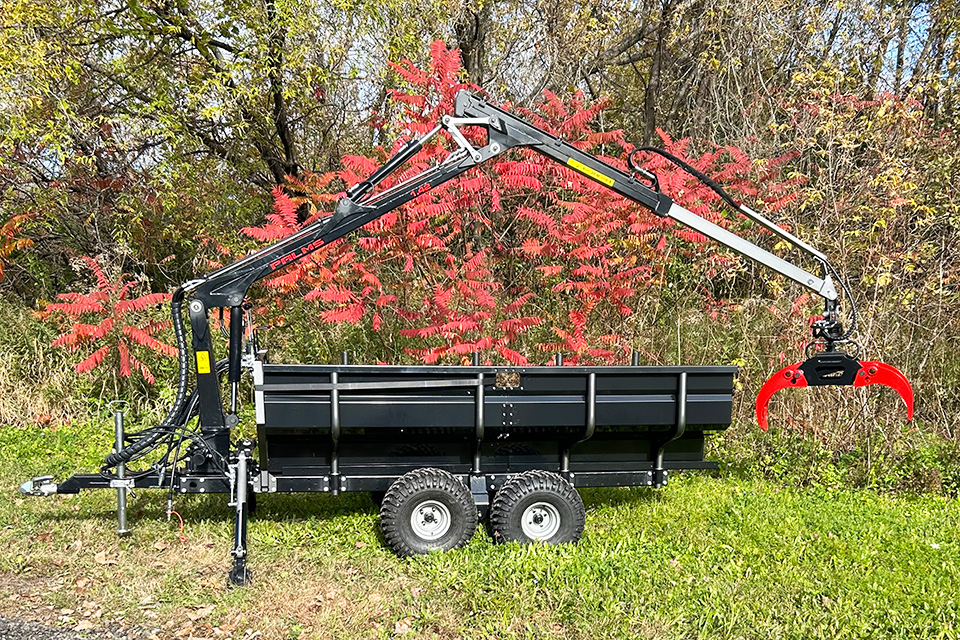

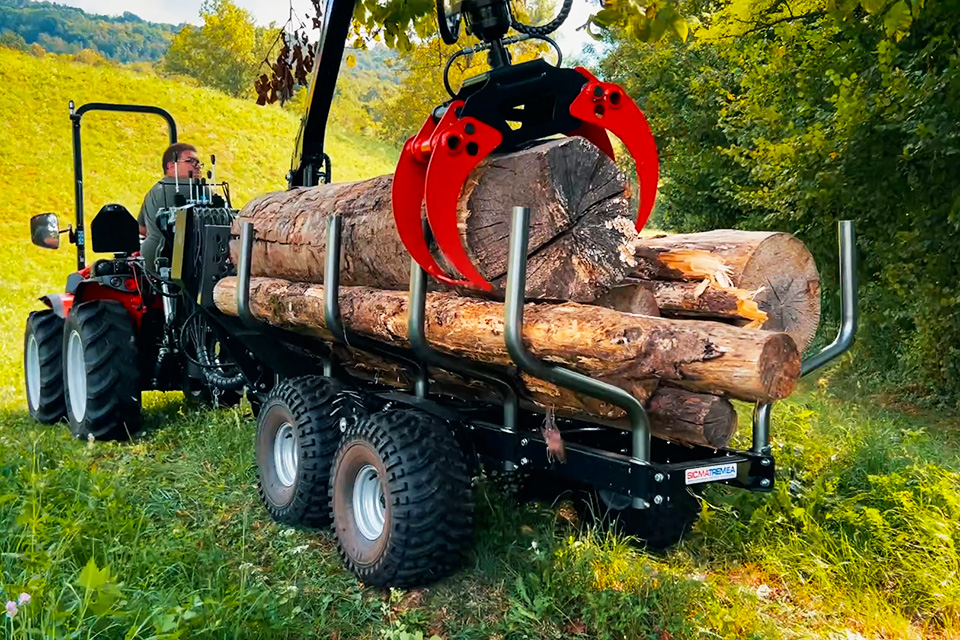

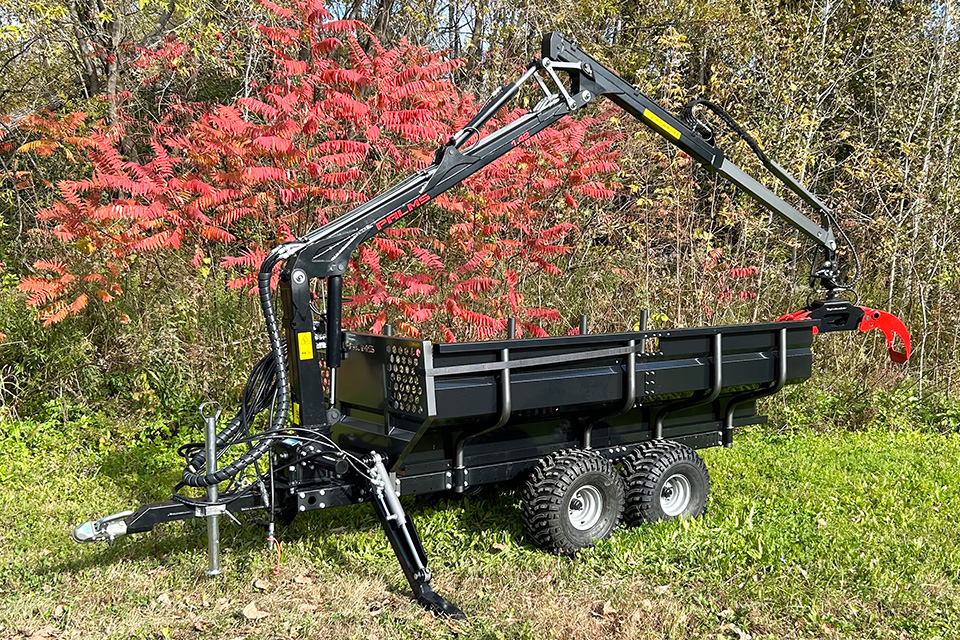

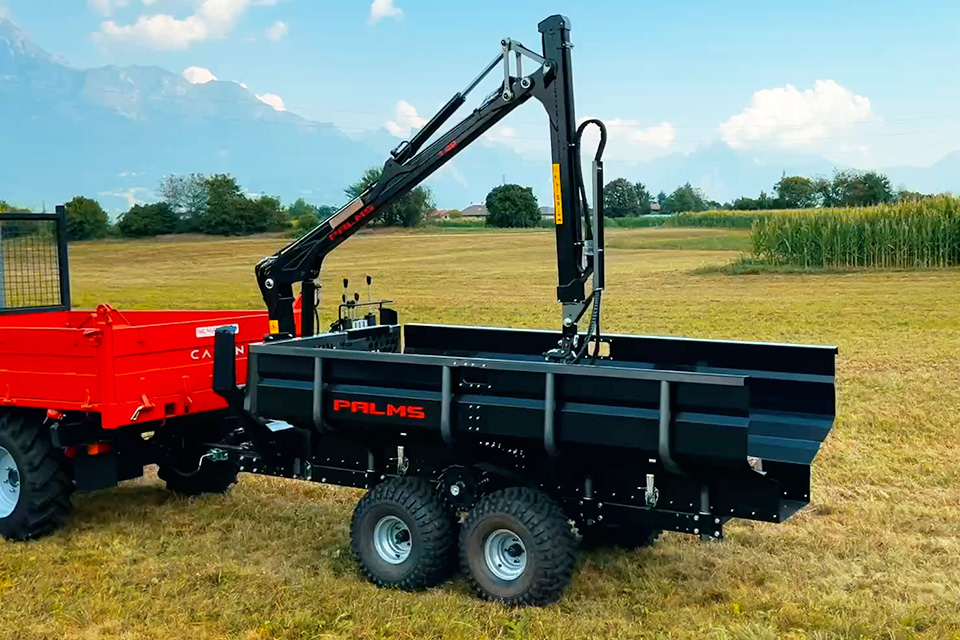

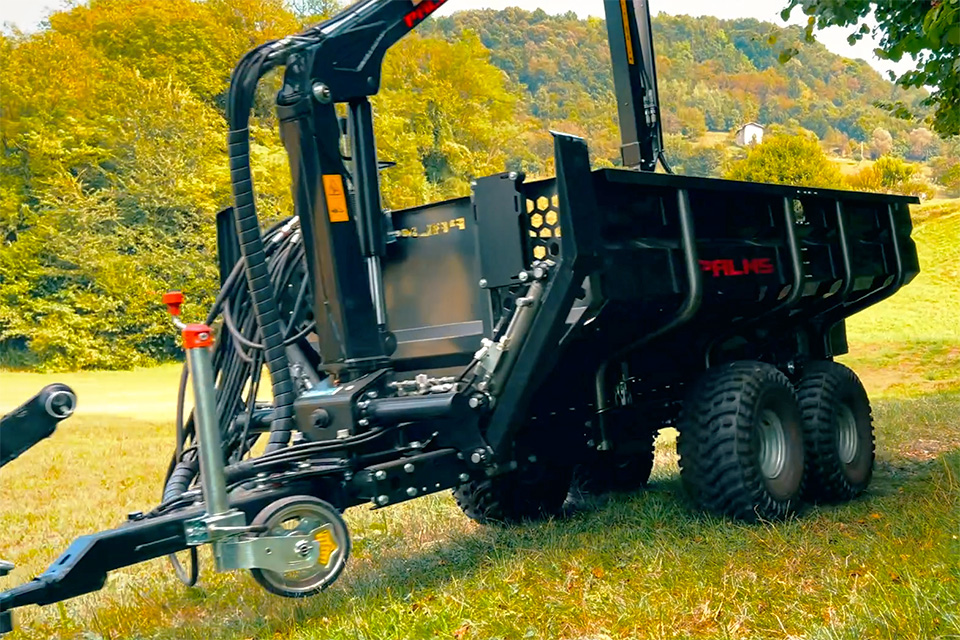

The Palms compact sized 1.42 log crane and 2D log trailer is now available to the owners of all-terrain vehicles and small tractors. You can use the ATV sized Palms log crane and trailer combination for all small-scale logging and hauling tasks. The durable double beam Palms 2D ATV forwarding trailer's frame is made of Strenx performance steel and has a KTL+Powder coating to resist corrosion. The trailer has a gross weight of 3,300 lbs. Also he trailer has an easy to install removable box for hauling loose material. The sturdy and easy to operate Palms 1.42 log crane has a 4.2 meter / 13.8 foot reach. Check out all the specs below.
| PALMS 1.42 CRANE |
|
|---|
| Max reach |
4.2 m / 13.8 ft |
| Max working pressure |
180 bar / 2,600 PSI |
| Lifting capacity at full reach and max pressure, w/o grapple and rotator |
190 kg / 420 lbs |
| Crane weight without support leg and valve block |
185 kg / 410 lbs |
| Gross lifting torque at maximum pressure |
11.5 kNm / 8,480 lbf-ft |
| Slewing torque |
2.1 kNm / 1,550 lbf-ft |
| Slewing angle |
330 degrees |
| Rotator maximum load |
10 kN / 2,250 lbf |
| Recommended oil flow |
10 - 20 l/min / 2.65 - 5 GPM |
| Approximate values for all specifications. |
| PALMS 2D LOG TRAILER |
|
|---|
| Gross weight |
1,500 kg / 3,300 lbs |
| Loading area cross section |
0.6 m2 / 6.5 ft2 |
| Loading area length |
2.45 m / 8 ft |
| Total length |
3.865 m / 12.7 ft |
| Width with standard wheels |
1.285 m / 4.2 ft |
| Standard wheel size |
22/11-8 |
| Max crane size by lifting torque |
12 kNm / 8,850 lb-ft |
| Curb weight without options |
260 kg / 575 lbs |
| Drawbar control cylinders |
1 piece |
| Approximate values for all specifications. |
